ATV Scribe Station

Manual Scribe Station

Bank holiday 25 Dec Bay 15 Translational Research Hub

Internal name

SCRIBE02

Equipment managers

Tyrone Jones

Tom Peach

Process types

Packaging and Back End Processing

Description

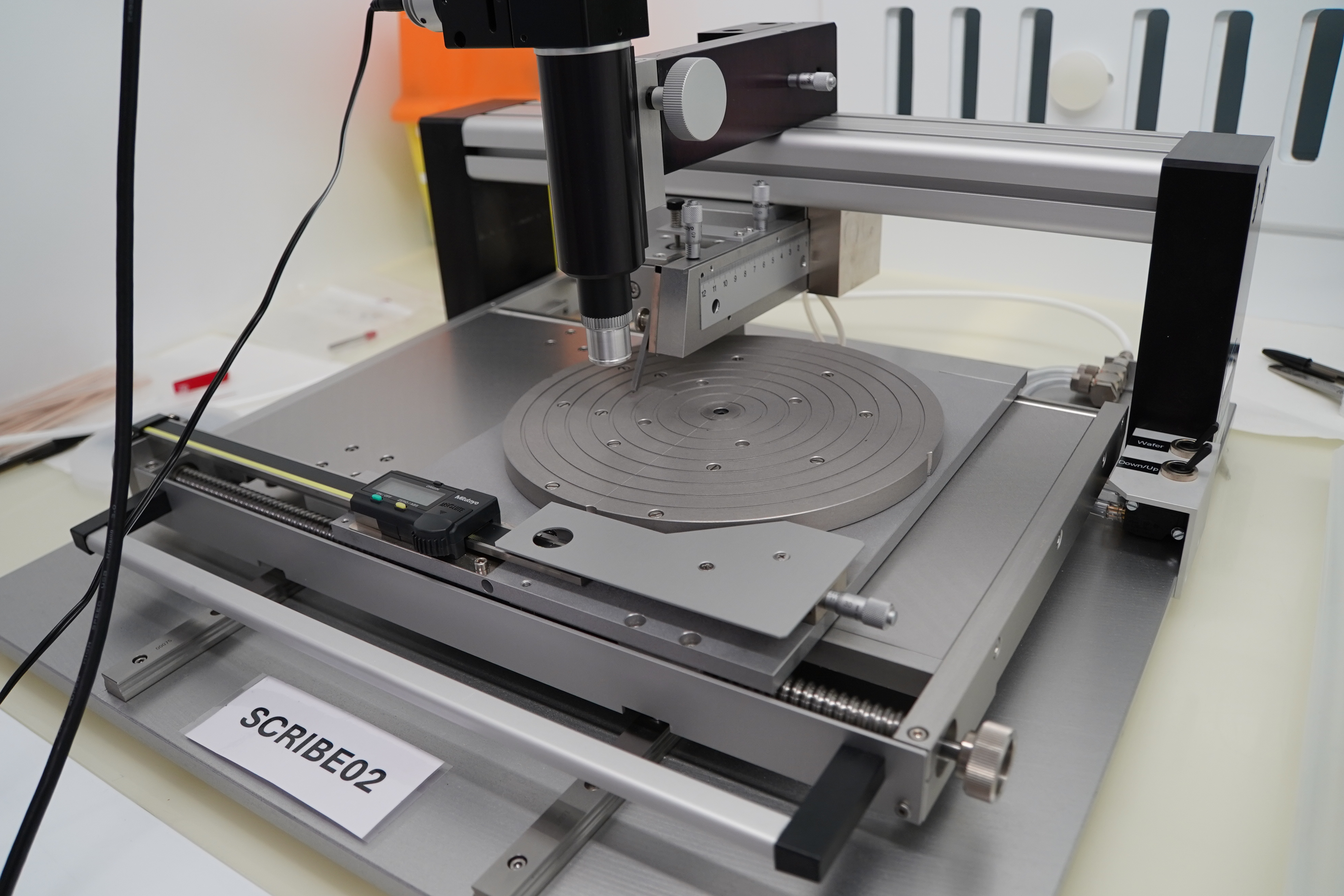

ATV precision manual diamond scriber for scribe-and-break separation of semiconductor wafers, glass and ceramic substrates. Fine X and rotational adjustment with a vacuum chuck and cross-hair microscope aligned to the scribe trace, plus adjustable tool angle, force and touch-down points for repeatable scribing prior to cleaving.
